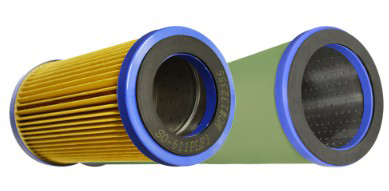

Parker Velcon SO Series Separator Cartridge

Choice of Teflon Coated Screen, Synthetic or Pleated Paper Media.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Starting Price: $348.35
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...
  • By Parker
  • Call for Availability

Features

  • 200°F maximum operating temperature
  • 5 to 9 pH range
  • Aluminum tubes
  • Aluminum and/or glass filled nylon end caps
  • EI1581 and EI1581 for Vel-Max Certification option
  • Uniform or variable tubes
  • Blind or open end 3.5in OD end cap configurations
  • Choice of PTFE coated screen, synthetic or pleated paper media

The Parker Velcon SO Series Separator Cartridge is employed as the second stage in filter/ separator vessels. Their sole function is to repel coalesced water drops produced by the first stage cartridges while allowing hydro-carbon fluids to pass through. Water drops settle into the filter/ separator sump and are not carried downstream. All particle filtering is done by the first stage coalescer cartridge.

PTFE Coated Screen (PCS) Cartridges are the most popular type of separator cartridge. With proper cleaning and inspection, cost effective PCS elements can be reused over many changeout cycles. And, PCS cartridges generate considerably less static charge than pleated paper cartridges. These features have made them the preferred choice for aircraft fueling applications.

Pleated Paper Cartridges cannot be reused and are replaced at every coalescer cartridge changeout. They are often used with diesel and other fuel oils which may contain materials that adhere to PCS cartridges and cannot be cleaned off.

Synthetic Media Cartridges can be cleaned a maximum of two times. They are intended for customers who do not want to take the time to clean and re-use separators.
