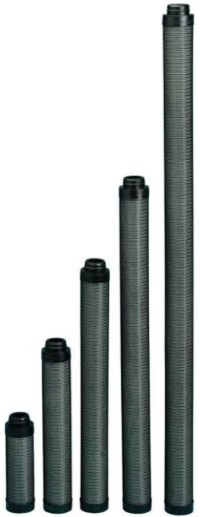

Parker Velcon CDFX SAP Free Water Barrier Filter

ffective against low-water emulsions and total water submersion.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open 8:30 am to 5:00 pm ET.
Starting Price: $110.05
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...
  • By Parker
  • Call for Availability

Features

  • EI 1588 performance: defends against emulsified water and full water slug protection
  • Innovative Barrier Technology: Water and dirt are prevented from passing downstream allowing only clean/dry fuel
  • Effective when introduced to water slugs at or greater than 101.5 psid
  • Effective in fuel with FSII (anti-icing additive)

The Parker Velcon CDFX SAP Free Water Barrier Filter provides a drop-in solution for existing 2in diameter filter monitors. Exterior dimensions and endcap styles remain the same while SAP media is replaced with new barrier technology. This allows for use with current monitor housings without the need for expensive and costly retrofitting of filtration systems on fueling carts and fueling trucks.

Parker's barrier technology filters contaminate and prevents water from passing downstream. Water droplets are blocked by a hydrophobic material that is porous to provide clean, dry fuel.

Water droplets impeded on the surface of the media coalesce and drop to the bottom of the vessel from where they must be drained.
