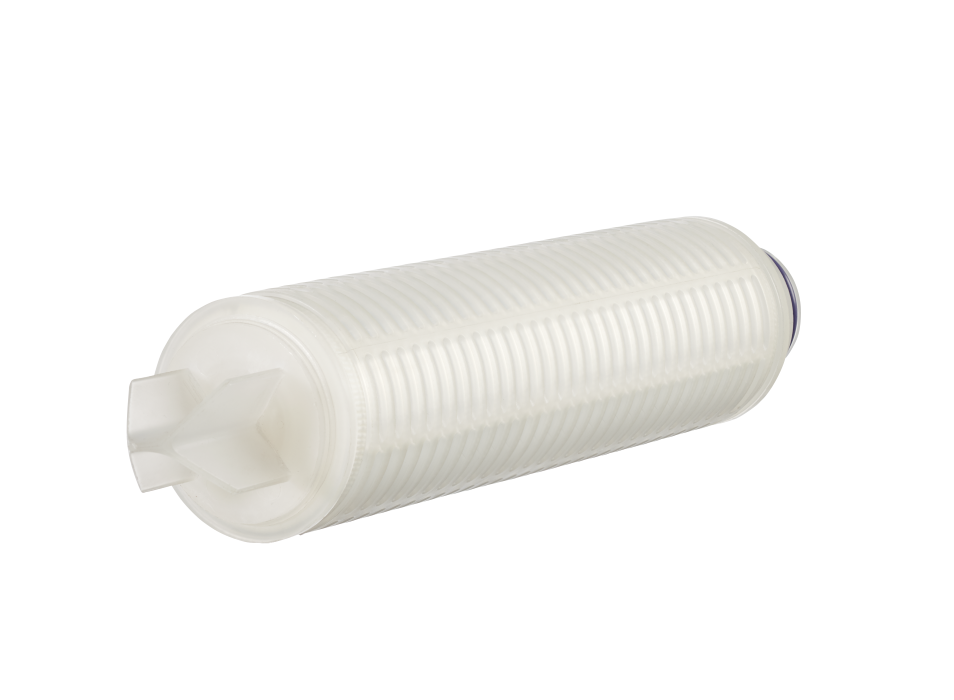

Veolia Water Technologies Flotrex PN Pleated Filter

0.2 to 30 microns.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open 8:30 am to 5:00 pm ET.
Starting Price: $67.43
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 1.25in inner diameter
  • 2.75in outer diameter
  • 60 psid @ 70°F maximum forward differential pressure
  • 30 psid @ 70°F maximum reverse differential pressure
  • 180°F at 10 psid maximum operating temperature in water
  • Polypropylene microfiber media
  • Polypropylene endcaps and adapters
  • Exterior to interior flow

The Veolia Water Technologies Flotrex PN Pleated Filter is a pleated, nominally-rated polypropylene microfiber depth filter cartridge designed primarily for prefiltration and bulk liquid processing applications. It is constructed entirely of polypropylene — including the microfiber filtration media, support layers, core, cage, and endcaps — with thermally welded and bonded construction that eliminates adhesives and binders.

Available in nominal ratings from 0.2 to 30 microns and cartridge lengths from 5 to 50 inches, it features a gradient density media architecture that maximizes dirt-holding capacity while maintaining particle retention. Flow is directed exterior to interior, with a maximum forward differential pressure of 60 psid at 70°F and a maximum operating temperature of 180°F at 10 psid in water.
