Smith Filter Fire Patrol Grease Filter

Available in aluminum, galvanized steel, 304 or 430 stainless steel.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Starting Price: $33.13
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 250°F maximum operating temperature - aluminum
  • 450°F maximum operating temperature - galvanized steel
  • 700°F maximum operating temperature - 430 stainless steel
  • 900°F maximum operating temperature - 304 stainless steel
  • 2in thickness
  • Meets requirements of NFPA Standard 96
  • UL Classified

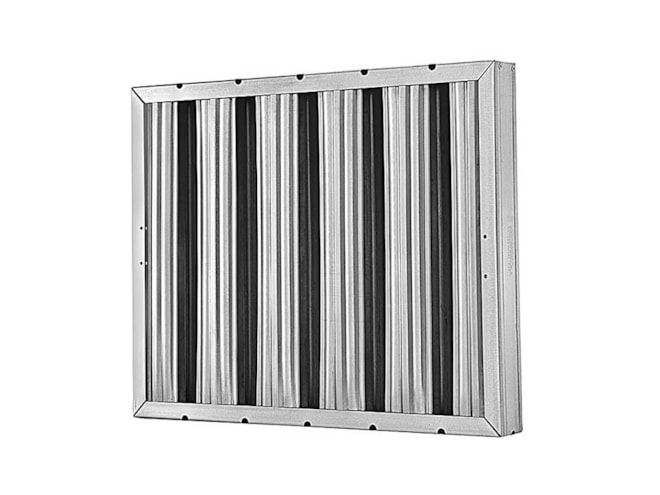

The Smith Filter Fire Patrol Grease Filter is a unique roll-formed baffle filter, designed to prevent flame from penetrating through the filter, into the hood and duct work. The sturdy design is made of two layers of baffles, strategically placed to allow grease laden air to swirl, adhering the grease to the baffles themselves. Grease drains down the baffles into a trough, where it can be easily wiped away. Support strips hold each baffle at precise distances from one another, allowing the proper distance between each baffle as well as giving the Fire Patrol the stability this type of filter requires. Each baffle “pad” is supported by a solid metal frame, securely riveted on one side.
