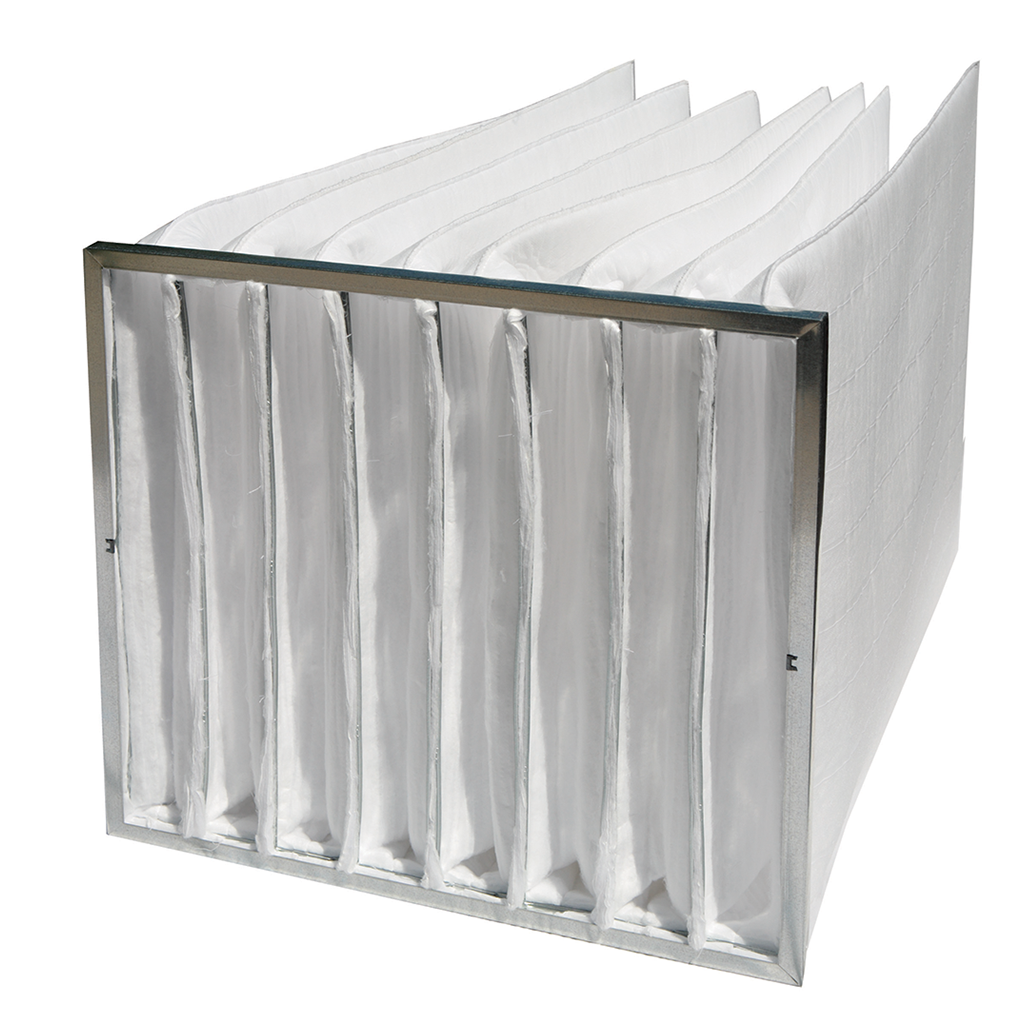

Viskon-Aire Revolution Synthetic Pocket Filter

100% mechanical filtration, resistant to humid environments.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Starting Price: $33.15
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • MERV 11:
    • 961.4 grams dust holding capacity
    • .183 in w.g. initial resistance
    • 1.50 in w.g. final resistance
  • MERV 13:
    • 596.6 grams dust holding capacity
    • .298 in w.g. initial resistance
    • 1.50 in w.g. final resistance
  • MERV 14:
    • 776 grams @ 1.50 w.g. dust holding capacity
    • 100% particle size efficiency @ 5µ
    • 0.50" w.g. pressure drop @ 1968 CFM
  • MERV 16
    • 0.34" in w.g. pressure drop @ 1968 CFM
    • 100% particle size efficiency @ 5µ
    • 12.0" w.g. burst strength pressure test
    • 791 grams @ 1.50" w.g. dust holding capacity

The Viskon-Aire Revolution Synthetic Pocket Filter utilizes a proprietary synthetic depth-loading media utilizing pre-formed pocket waves in the manufacturing process to increase the effective media area by more than 2.4 times in the same space.

The Revolution is manufactured with galvanized header to ensure its rigidity while providing a leak-proof design. The pockets are formed and sonically welded to eliminate the need for stitching throughout the pocket. The Revolution extended surface filters can be used in general HVAC systems, surface finishing plants, hospitals, pharmaceutical plants, food processing plants, telecommunication stations, and industrial environments where sustained  performance and high dust-holding capacity is required.

Part Number Price Available
RV1424241506
Show Configuration
$74.26 210 in stock
RV1324241210
Show Configuration
$58.96 170 in stock
RV1424241508
Show Configuration
$93.07 170 in stock
RV1324241510
Show Configuration
$65.30 162 in stock
RV1324201510
Show Configuration
$109.08 103 in stock
RV1320201506
Show Configuration
$69.71 100 in stock
RV1420201506
Show Configuration
$73.31 41 in stock
RV1312241506
Show Configuration
$69.72 21 in stock
RV1320241510
Show Configuration
$109.08 15 in stock
RV1124242208
Show Configuration
$96.66 14 in stock
RV1412242204
Show Configuration
$62.35 8 in stock
RV1424242206
Show Configuration
$90.99 8 in stock
RV1324241508
Show Configuration
$87.89 3 in stock
RV1324242210
Show Configuration
$134.36 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
