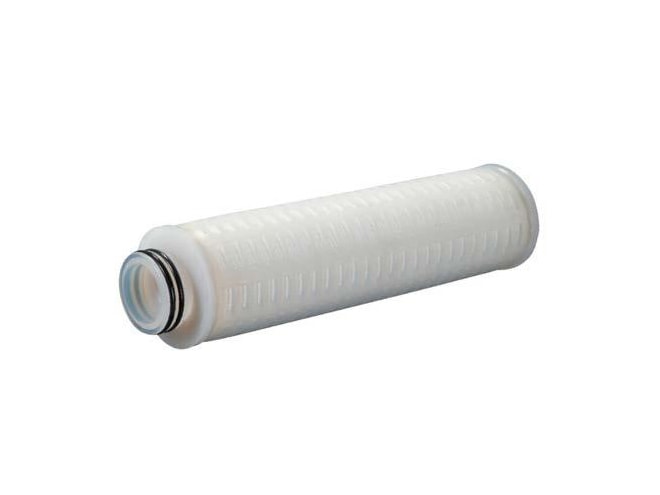

Global Filter GPFA-Series Pleated PTFE/PFA Filter Cartridge

PTFE filtration media with PFA end caps.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Starting Price: $8,710.02
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.05-10 microns
  • 2.68 outside diameter
  • 35 psid recommended change out
  • 320°F maximum temperature
  • 73 psid @ 68°F maximum differential pressure
  • Various end cap styles
  • Teflon encapsulated Viton o-ring/gasket

The Global Filter GPFA-Series Pleated PTFE/PFA Filter Cartridge provides optimized chemical compatibility, temperature range, and ultra-low extractables for the most demanding needs of the microelectronics industry. Designed for aggressive “wet-etch and clean” applications. The PTFE membrane offers high flow rates at low pressure drop, while the ultra-pure perfluoralkyl (PFA) hardware exhibits maximal chemical resistance and high temperature tolerance. Minimized ionic and TOC extractables are attained through a specialized UPW flush process. Wetpacking option is available for ease of wetting in aqueous applications. Available in the full range
of micron ratings to suit all applications.
