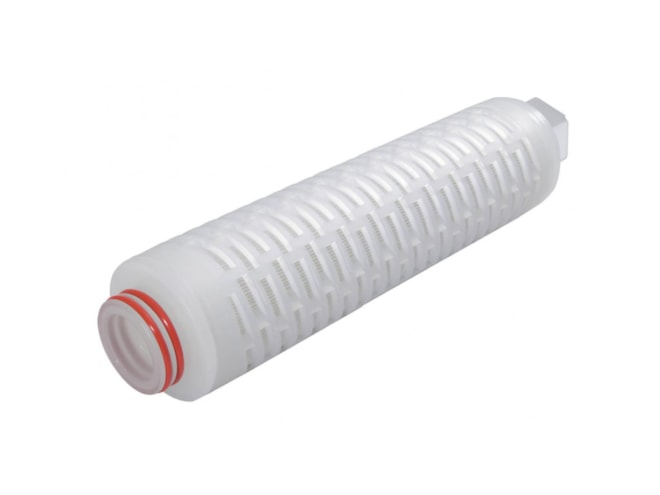

Global Filter BRPTFE-Series Bio-Burden Reduction Grade PTFE Filter Cartridge

PTFE membrane with polypropylene support media.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Starting Price: $1,541.04
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.2 microns
  • 10-40in lengths
  • 2.7 outside diameter
  • 35 psid recommended change out
  • 176°F maximum temperature
  • 50 psid @ 68°F maximum differential pressure
  • Various end cap styles and o-rings/gaskets
  • High temperature option

The Global Filter BRPTFE-Series Bio-Burden Reduction Grade PTFE Filter Cartridge provides reliable high-LRV reduction of micro-organisms in bio-process applications where the cost of a fully-validated pharmaceutical-grade cartridge is not required. Whether it’s fermentation feed air, compressed gas, or a process venting application, the BRPTFE offers a high-flow, high-capacity membrane filter with hydrophobicity. The high flow rate allows for economical costs of system design & operation. Proven 7.4 LRV retention of aerosolized bacteriophage provides reliable bioburden reduction and prevention of process contamination. Tolerates multiple sterilization cycles by autoclave or in-situ steaming. 100% integrity tested in production.

Manufactured in a cleanroom environment to maintain high standards of purity and cleanliness.
