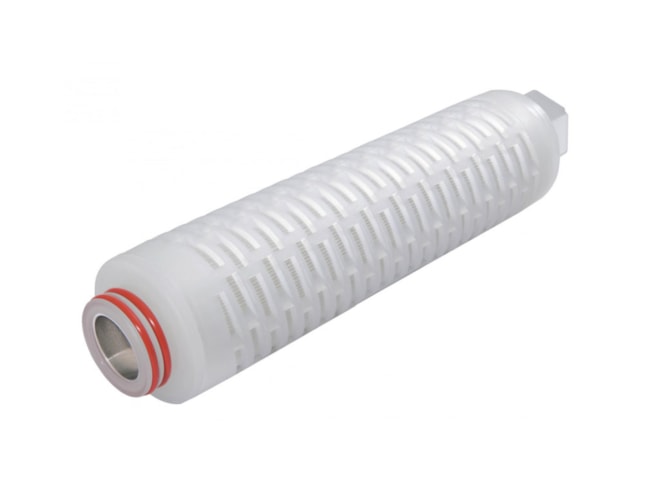

Global Filter GGPTFE-Series General Grade PTFE Filter Cartridge

Offered in 0.1, 0.2, and 0.45 microns.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Starting Price: $1,508.52
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 10-40in lengths
  • 35 psid recommended change out
  • 176°F maximum temperature
  • 50 psid @ 68°F maximum differential pressure
  • Teflon membrane
  • Polypropylene support media
  • Various end cap styles and o-rings/gaskets
  • All polypropylene components meet the specifications for biological safety per USP Class VI – 121˚C for plastics

The Global Filter GGPTFE-Series General Grade PTFE Filter Cartridge provides effective chemical resistance for a broad range of industrial applications. With retention ratings as fine as 0.1μ (100 nanometers), consistent contaminant removal is achieved in aggressive fluids and organic solvents. In air/gas/vent applications, the singlelayer PTFE membrane delivers superior hydrophobicity
versus polypropylene or PVDF; offering a superior option to preclude water wetting and associated diminished flow.

Manufactured in a clean-room environment to maintain high standards of purity and cleanliness.
