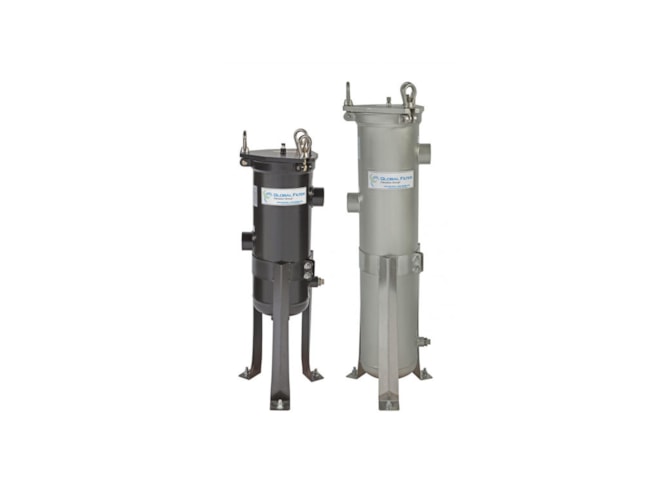

Global Filter GBFV8-Series Single Bag Liquid Filter Vessel

Stainless steel or carbon steel construction with epoxy coated exterior support baskets.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Starting Price: $2,753.75
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 304 or 316L stainless steel construction
  • 2in NPT uni-style
  • 150 PSI pressure rating standard
  • Basket size 1 = 15in depth, max flow rate 90 GPM
  • Basket size 2 = 30in depth, max flow rate 200 GPM
  • BSP, NPT, or RF Flanged inlet/outlet connections
  • Single o-ring seal (Buna-N standard)
  • Optional ASME stamp, CE mark, and NSF-61

The Global Filter GBFV8-Series Single Bag Liquid Filter Vessel is designed to meet and/or exceed nearly all application requirements. The V-ring design provides a positive snap-fit to ensure against bypass and deliver clean effluent.

Manufacturer Stock

Part Number Price Available
GBFV8302N3615GB
Show Configuration
$3,081.25 19 in stock
GBFV8303F1615GB
Show Configuration
$3,722.50 4 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
