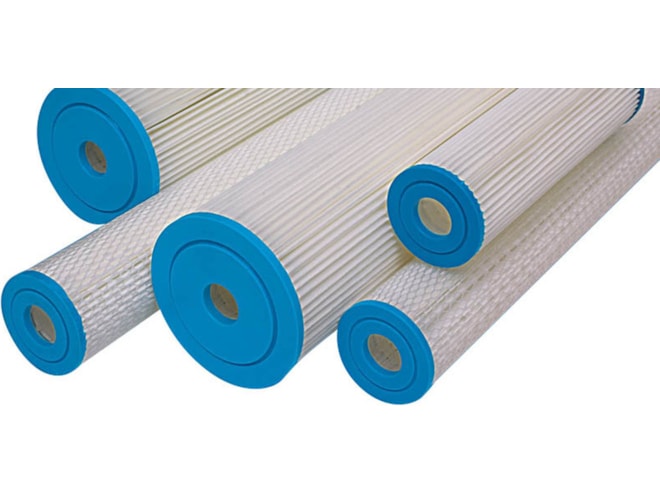

Global Filter LiquidClear GF Series Pleated Synthetic Depth Filter Cartridge

High dirt-holding capacity with low pressure drop rates at nominal efficiencies.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open 8:30 am to 5:00 pm ET.
Starting Price: $7.17
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 9.75 to 40in lengths
  • 1 to 50 micron ratings
  • Polyester filtration media
  • Polyurethane end cap/gasket
  • Polypropylene core and netting
  • DOE flat gasket end cap
  • 140˚F max temperature
  • 50PSID at 68˚F differential pressure
  • Change Out ΔP (recommended) 20-25 PSID

The LiquidClear GF Series Pleated Synthetic Depth Cartridge offers economical, cellulose-free construction with significant dirt-holding capacity and low pressure drop at nominal efficiencies. LiquidClear cartridges are produced using 100% synthetic fibers, and free of binders or adhesives. They are made with polyester filtration media, core and outer netting made of polypropylene, and feature polyurethane end caps for an integral and positive seal. The GF series can be configured with 1 to 50 micron filtration grades and up to 40in length.

Materials of the LiquidClear GF series comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21 CFR. Materials used to produce filter media and hardware are deemed safe for contact with foodstuffs under EU Directives 1935/2004, and/or 10/2011.

Applications

  • Process water
  • Cooling water
  • Drinking water
  • R.O. pre-filtration
  • Plating chemicals
  • Food and beverage
  • Wastewater
  • Deionized water
Part Number Price Available
GF-20-9.75
Show Configuration
$7.17 300 in stock
GF-20-19.5
Show Configuration
$13.08 100 in stock
