Overview

Features

  • 2in nominal thickness
  • 300–500 fpm rated air velocity
  • 1,000–2,000 cfm air flow rates
  • 500°F maximum operating temperature
  • MERV8
  • Aluminized steel channel frame with a heavy-duty expanded metal screen

Description

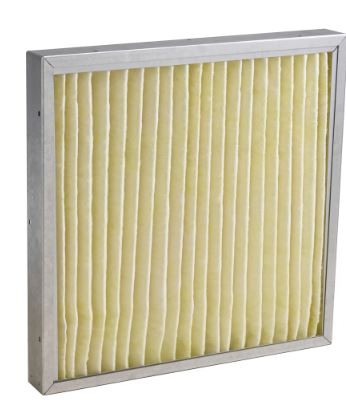

The Parker DP HT High Temperature Pleated Filter are specially engineered for harsh operating conditions, where elevated temperatures can cause standard pleated filters to fail prematurely. The filters utilize ultra-fine microglass fiber with high-temperature woven scrim backing and are designed for continuous operation in environments up to 500°F (260°C). The filters perform to MERV 8 per ASHRAE 52.2-2007 and feature an aluminized steel channel with a heavy-duty expanded metal screen on the side where the air is expelled, which provides added durability and supports the media pack inside the frame. The pleats can be installed either vertically or horizontally.

In Stock

Part Number Price Available
DPHT-STD-24242
$45.24 320 in stock
DPHT-STD-16202
$37.69 254 in stock
DPHT-STD-20202
$40.72 102 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
